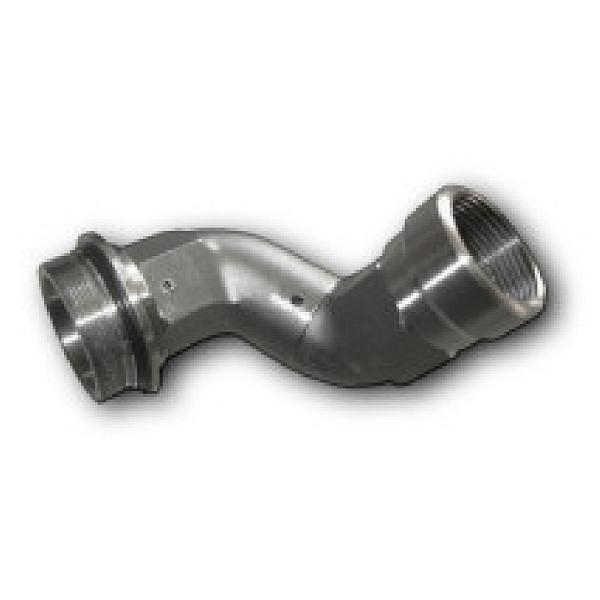

Z Swivel

Z SwivelBENEFITS:

  • Custom size available
  • Strong Body
  • Stainless Steel construction
  • Clean internal body
  • No Intrusions to upset flow
  • Same size through body
  • In-use for the last 6 years
  • Different sizes for diff erent situations
  • Different end pieces as required
  • Full multi ple-plane movement ( 2 or 3 directions)
  • 45º between the ends when at 180º for easy handling
  • Internal bearing to keep stress off  seals and longer life
  • No snap rings or circlips to break
  • Tested to 250 psi, 100,000 movements and 25KN pull apart test
  • ZVA Threads as required
STAINLESS STEEL
SIZE
THREADS INT/EXT
NO. SWIVELS
CODE
075 3/4″ BSM / 34/1.5
1
075BSPM34Z1
075 3/4″ BSPF / 34/1.5
2
075BSPF34Z2
1 1″ BSPM / 42/1.5
1
100BSPM42Z1
1 1″ BSPF / 42/1.5
2
100BSPF42Z2
1 42/1.125 / 1″ spanloc
3
125BSPAN42Z3
1.25 1.25 BSPF / 54/1.5
3
125BSPF54Z3
1.25 1.25 BSPM / 54/1.5
3
125BSPM54Z3
1.25 54/1.5 / 1.25 spanloc
3
125SPAN54Z3
1.5 To Suit
3
150SPAN
2 To Suit
3
200SPAN
3 To Suit
3
300SPAN
